Leica BLK360 3D Laser Scanner Cyclone Pro Pack For Sale

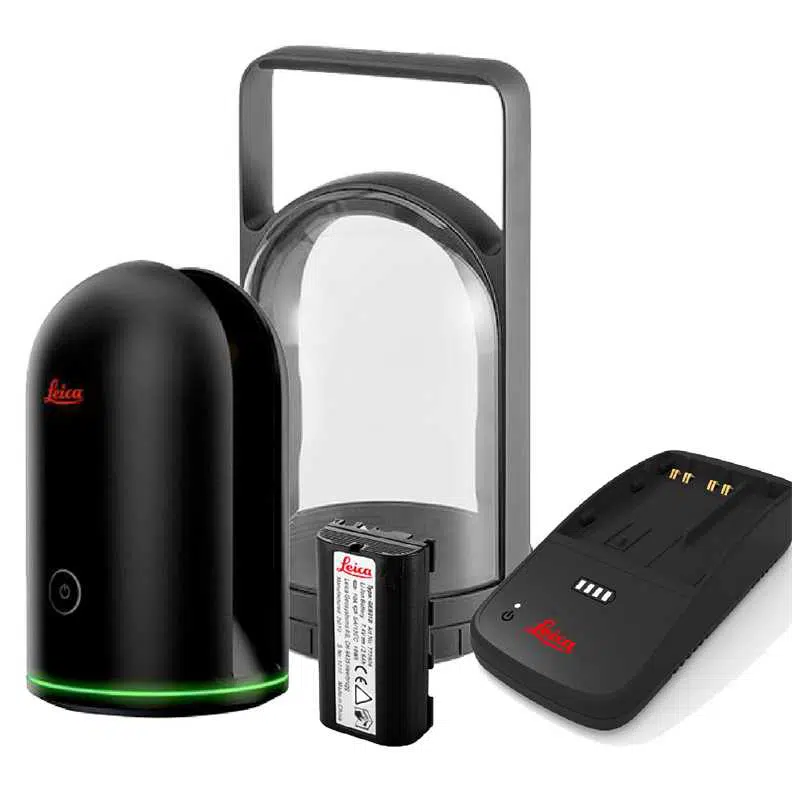

Leica BLK360 3D Laser Scanner Cyclone Pro Pack

Leica BLK360 captures the world around you with full-colour panoramic images overlaid on a high-accuracy point cloud. Simple to use with just the single push of one button, the BLK360 is the smallest and lightest of its kind. Anyone who can operate an iPad can now capture the world around them with high resolution 3D panoramic images.
Using the ReCap Pro mobile app, the BLK360 streams image and point cloud data to iPad. The app filters and registers scan data in real time. After capture, ReCap Pro enables point cloud data transfer to a number of CAD, BIM, VR and AR applications. The integration of BLK360 and Autodesk software dramatically streamlines the reality capture process thereby opening this technology to non-surveying individuals.

Specifications:

• Imaging Scanner : 3D Laser with integrated spherical imaging system and thermography panorama sensor system
• Design and Physical
  Housing : Black anodized aluminium
  Dimensions : Height:165mm / Diameter:100mm
  Weight : 1kg
  Transport Cover : Hood with integrated floor stand
  Mounting mechanism : Button-press quick release
• Operation
  Stand-alone operation : One-button operation
  Remote operation : iPad app – Apple iPad Pro® 12.9”/IOS 10 or later
  Wireless communication : Integrated wireless LAN (802.11 b/g/n)
  Internal memory : Storage for >100 setups
  Instrument orientation : Upright and upside down
• Power
  Battery type : Internal, rechargeable Li-Ion battery (Leica GEB121)
  Capacity : Typically, >40 setups
• Scanning
  Distance measurement system : High speed time of flight enhanced by Waveform Digitizing (WFD) technology
  Laser Calss : Class 1
  Wavelength : 830nm
  Field of view : 360˚ (horizontal / 300˚ (vertical)
  Range : Min. 0.6 up to 60m
  Point measurement rate : Up to 360,000 pts/sec
  Ranging accuracy : 4mm @ 10m / 7mm @20 m
  Measurement modes : 3 user selectable resolution settings
• Imagining
  Camera System : 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED flash Calibrated spherical image, 360˚x70˚
• Performance
  Measurement speed : <3 min for complete full dome scan, spherical image and thermal image
  3D point accuracy : 6mm @ 10m /8mm @20
• Environmetnal
  Robustness : Designed for indoor an outdoor use
  Operating temperature : +5 to +40˚c
  Dust/Humidity : Solid particle/liquid ingress protection IP54 (IEC 60529)

Package includes:
BLK360 Imaging Laser Scanner
GEB212 Lithium-Ion Battery for the BLK360
GKL311 Battery Charger
AC/DC adaptor
BLK360 Tripod
BLK360 Mission bag
ReCap Pro 1 year subscription
Leica Cyclone REGISTER Permanent License
Leica Cyclone REGISTER 1 year of CCP (which provides access to Cyclone REGISTER 360 for that period)
TruView Cloud Free 90 day / 50 Scan Position Promo
