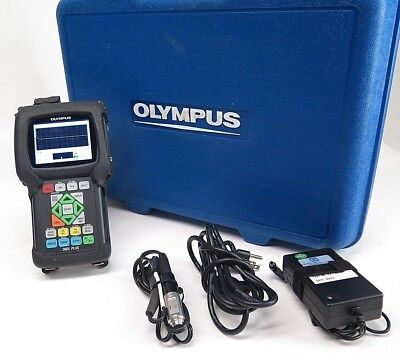

Olympus 38DL PLUS Ultrasonic Thickness Gauge

Key Features
Dual and single element transducer compatibility
Wide thickness range: 0.08 mm (0.003 in.) to 635 mm (25 in.) depending on material and transducer selection
Corrosion thickness gaging with dual element transducers
THRU-COAT® and Echo-to-Echo measurements on painted and coated surfaces
Internal Oxide/Scale software option
Standard resolution of 0.01 mm or 0.001 in. for all transducers
High Resolution software option of 0.001 mm or 0.0001 in. with single element transducers 2.25 MHz to 30 MHz
Multilayer software option for measurements of up to four layers simultaneously
High Penetration software option for attenuating materials such as fiberglass, rubber and thick casting
Thickness, Velocity, and time-of-flight measurements
Differential mode and Reduction Rate mode
Time-based B-scan mode; 10,000 reviewable readings per scan
Olympus High Dynamic Gain technology with digital filters
V-Path Builder for custom V-path compensation
Designed for EN15317
