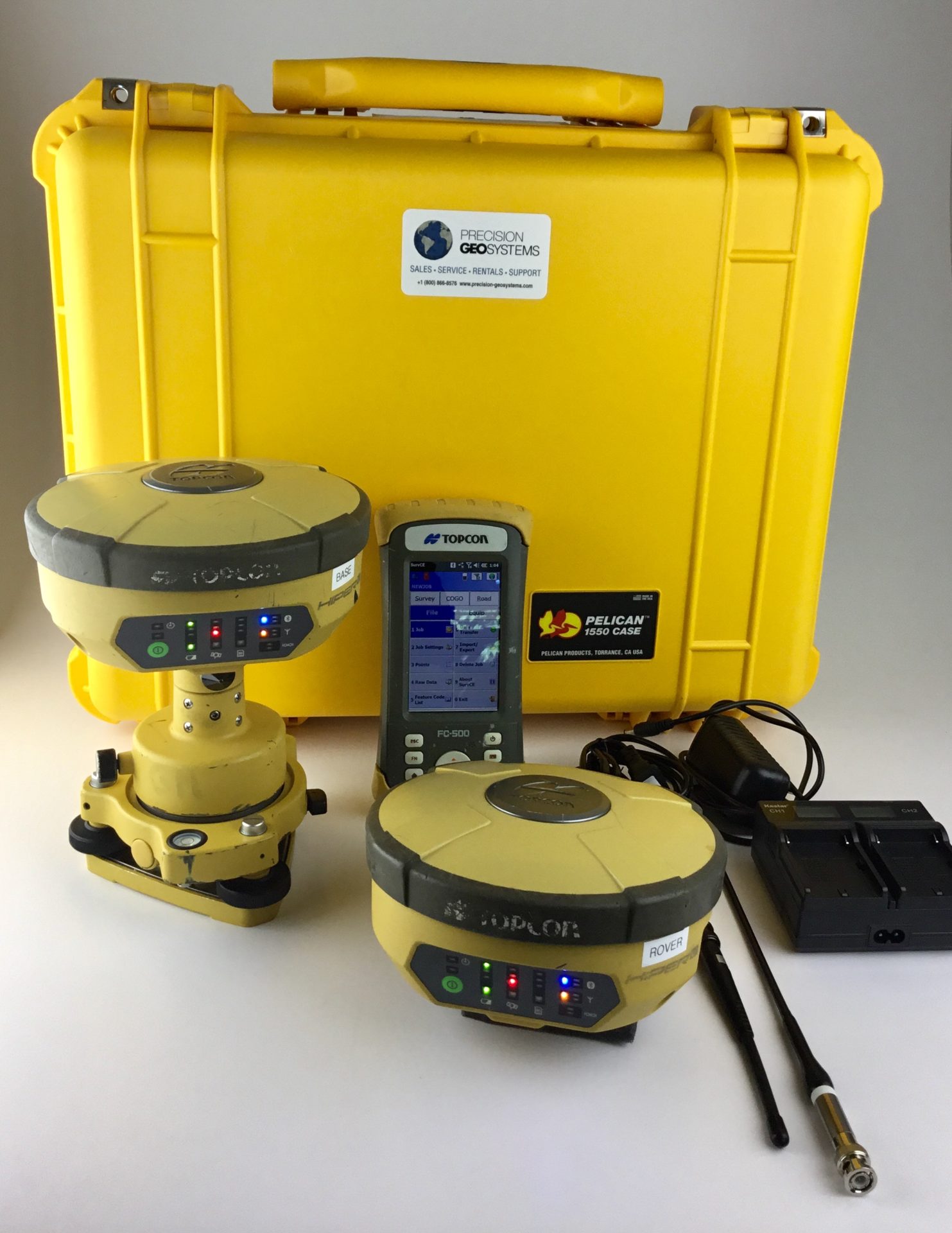

Topcon HiPer V Rover FC 500 For Sale

Topcon HiPer V Rover FC 500

Topcon HiPer V Rover paired with the FC-500 field controller delivers a powerful and reliable GNSS solution for professional surveyors and construction crews. Designed for high-accuracy RTK positioning, the HiPer V supports multi-constellation tracking, including GPS, GLONASS, Galileo, and BeiDou, ensuring dependable performance even in challenging environments.

With integrated Bluetooth® and radio communication, the HiPer V offers cable-free convenience and maximum flexibility in the field. The FC-500 controller features a rugged, sunlight-readable touchscreen and is optimized for Topcon MAGNET® Field software, providing seamless data collection, stakeout, and layout operations.

This rover system is built to withstand harsh conditions while delivering consistent precision, making it ideal for topographic surveys, construction layout, and geospatial applications.

Specifications

GNSS Tracking

• Number of Channels: 226-Channel Vanguard Technology™ with Universal Tracking Channels
• Signals Tracked: GPS, GLONASS, SBAS, EGNOS, MSAS, QZSS

Wireless Connectivity

• Bluetooth: V2.1 + EDR, Class 2, 115,200bps
• Radio: UHF, Spread Spectrum, Cellular (options)

Certifications and Standards

• Dust/Water Protection: IP67
• Shock Rating: 6.56 ft. (2m)

Performance

• Operating Temperature: -40°F to 149°F, (-40°C to 65°C), ** -4°F to 149°F, (-20°C to 65°C), ***, -4° to 131°F, (-20° to 55°C)
• * External Power, ** Battery *** Cellular

Physical and Environmental

• Enclosure: Magnesium alloy housing
• Dimensions: 7.24” D x 3.74“ H, (184mm D x 95mm H)
• Weight*: 2.20 lb. to 2.82 lb., (1.0kg to 1.28kg), 7.23 oz. (195g)

Power and Electrical

• Standard Battery: Detachable, Li-ion rechargeable battery, 7.2V, 4.3Ah
• Operation Time*: >7.5 hours in static mode w/Bluetooth® connection
• Input Voltage Range: 6.7 to 18V DC, *At 68°F (20°C)

Accuracy

• Static/Fast Static: H: 3.0 mm + 0.4 ppm, V: 5.0 mm + 0.5 ppm
• Precision Static: H: 3.0 mm + 0.1 ppm, V: 3.5 mm + 0.4 ppm
• RTK (L1+L2): H: 5 mm + 0.5 ppm, V: 10 mm + 0.8 ppm

Data

• Real Time Data Output: TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+
• ASCII output: NMEA 0183 version 2.x, 3.x and 4.x

Communications

• Cellular: Integrated HSPA+/CDMA

Includes:
Topcon Hiper V Receiver, OAF, HiPer V L2 GPS, OAF, HiPer V L2 GLONASS, OAF, HiPer V RTK 10 Hz, Antenna, UHF 440-470 Male BNC
Topcon FC-500 GEO +3G Field Controller with Pole Bracket
Magnet Field GPS Software
GPS Composite Pole
Topcon Easycare
Hard Case
2-year Topcon Warranty
