Trimble SX10 3D Scanner and Total Station For Sale

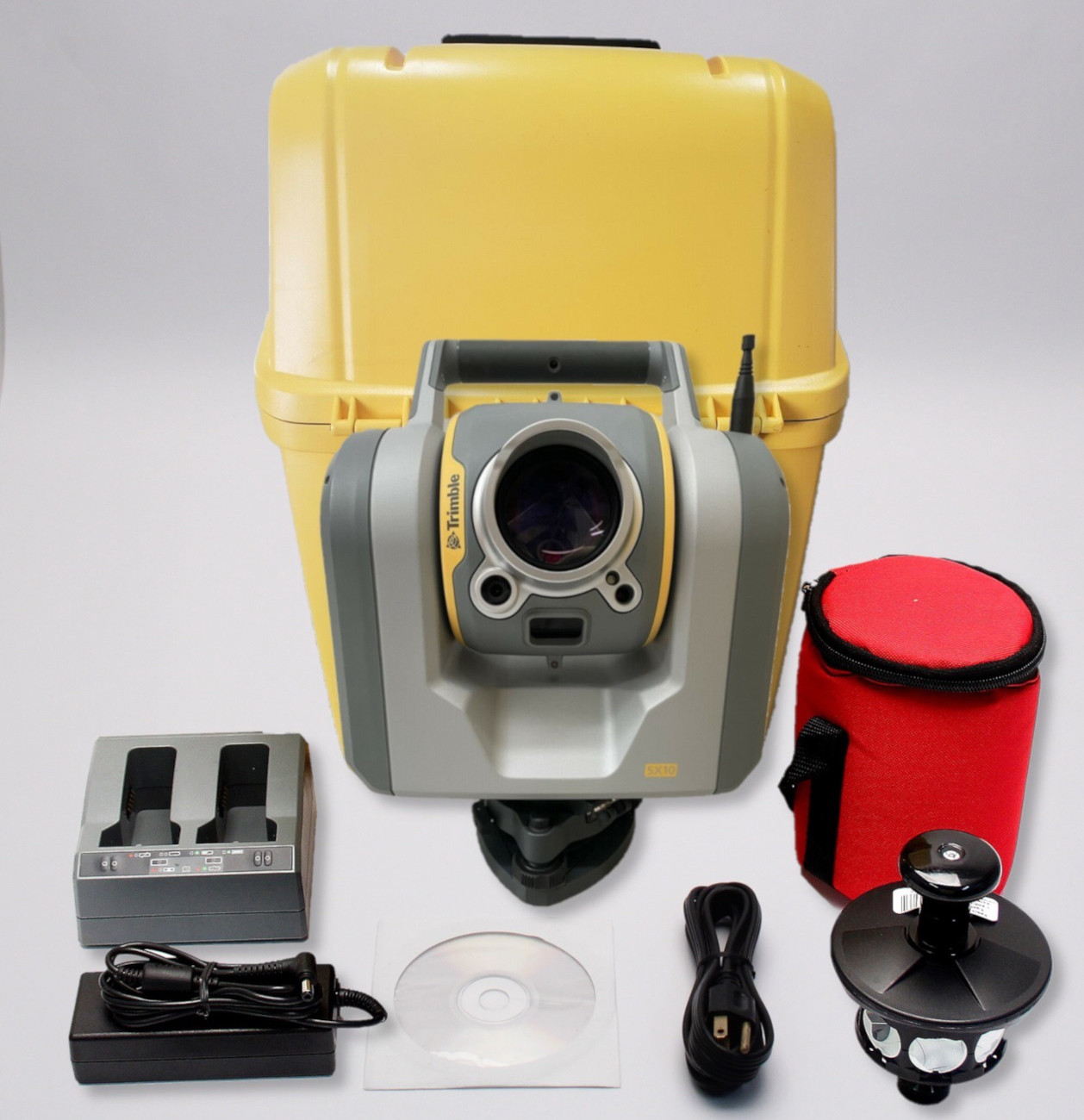

Trimble SX10 3D Scanner and Total Station

Trimble SX10 scanning total station is capable of collecting any combination of high-density 3D scan data, enhanced Trimble VISION imaging, and high accuracy total channel data, allowing you to capture precisely what you need, saving you time and money on every job.

Trimble SX10 combines three traditional instruments into one! Now you can survey, capture images, and perform high-speed 3D scans with one piece of equipment. Loaded with Trimble’s Lightning 3DM technology the SX10 has scanning ranges up to 600 meters and can capture up to 26,600 points per second.

Combine that with Trimble Vision technology and you now have an instrument that can quickly and easily capture high-resolution images of your site. In addition, you will continue to get to work with Trimble Access and Trimble Business Center software. Both software you are already familiar with and comfortably operate in. The Trimble SX10 will change the way you work!

Trimble also offers the SX10, which brings together the capabilities of a total station with 3D laser scanning. This is great for picking up survey targets and detail in the scene while also scanning, and is one of the leading hybrid products on the market.

Specs
Angular Accuracy 5″
Compensator Centered dual-axis
Scan Speed Up to 26,600 Hz at ranges up to 600 m
Built-in Colour Camera Yes
Scanning Yes
Operating Temperature –20 °C to 50 °C
Battery Life One internal battery: Approx. 2–3 hours
IP Rating IP55
Plummet Type Built-in video plummet, Split optics tribrach with optical plummet
Wi-Fi WiFi, 2.4 GHz Spread Spectrum, cabled (USB 2.0)
Field Of View 360° x 300°
Brand TRIMBLE
