Trimble TDC100 Handheld Data Collector is a rugged, smartphone-style GNSS device that combines professional-grade positioning with Android™ functionality. Ideal for mapping, surveying, and field data collection, it offers reliable accuracy, connectivity, and durability for demanding field environments.
Trimble TDC100 Handheld Data Collector For Sale
Roll over image to zoom in
$510,00$650,00 (-22%)

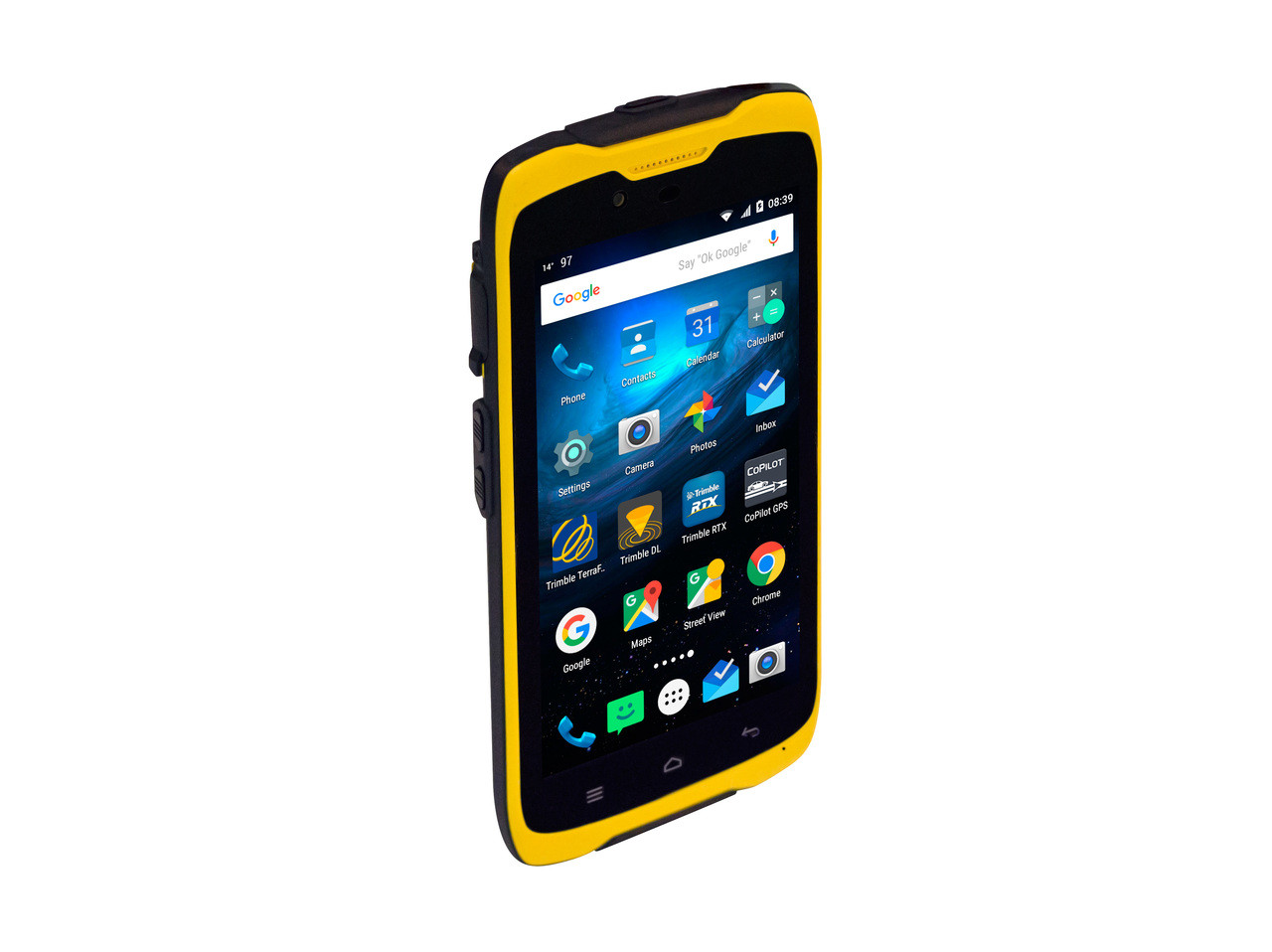

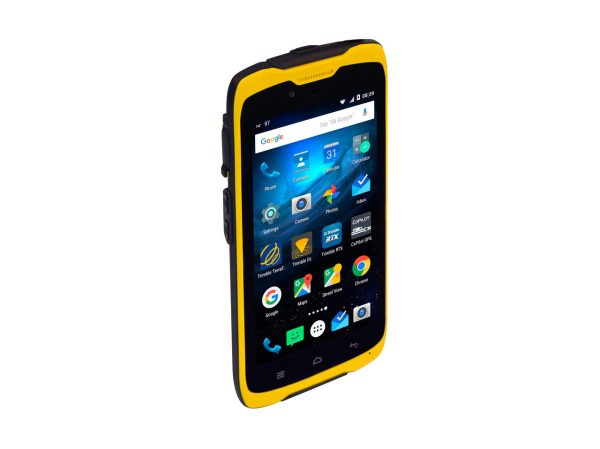

Trimble TDC100 Handheld Data Collector
Trimble TDC100 handheld data collector. An entry-level Global Navigation Satellite System (GNSS) device for a variety of Geographic Information System (GIS) applications, the Trimble TDC100 combines both smartphone and ruggedized data collection capabilities in a single, mobile device. The Android-based TDC100 is flexible and can run commercially available or in-house developed applications on a professional, IP-67 ruggedized platform with a sunlight readable display and user replaceable batteries. The built-in GNSS receiver also provides real-time accuracy.
Key specifications
We highlight the following key device specifications. For more detailed information, please see the original manufacturer’s brochure :
Integrated 4G modem for talk, SMS, and data transfer (4G model)
Susceptible GNSS / SBAS receiver and antenna (72 channels)
<1.5 m real-time accuracy (SBAS)
13 MP (4G model) or 8 MP (Wi-Fi model) camera with flash and geotag function
Capacitive multi-touch Gorilla Glass screen, size 13.5 cm (5.3 ″)
Bluetooth® v 4.0
Wi-Fi IEEE 802.11 b/g/n
NFC (4G model)
Long-lasting replaceable Li-Ion battery (standard or extended capacity)
1.2 GHz Qualcomm processor
2 GB SDRAM
16 GB (4G) and 8 GB (Wi-Fi model) flash memory
MicroSDHC memory card slot
Integrated speaker and microphone
IP 67 standard for chemomechanical resistance
Temperature: -20 ° C to + 60 ° C (operating), -30 ° C to + 70 ° C (storage)
Android® 6.0 operating system (“Marshmallow”)
GNSS protocol: location services, NMEA (optional)
