Zetec Topaz 16: Advanced Portable Phased Array UT Instrument

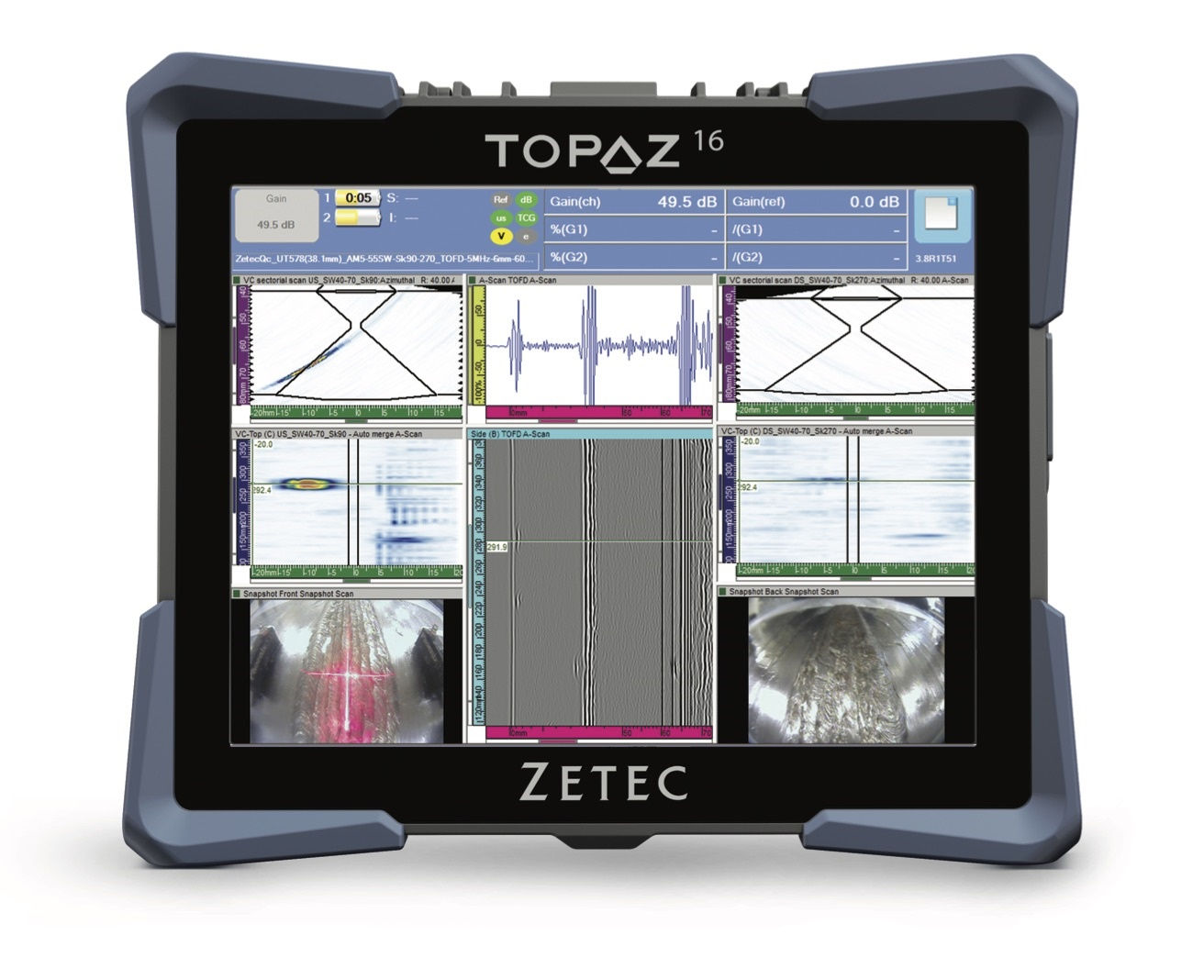

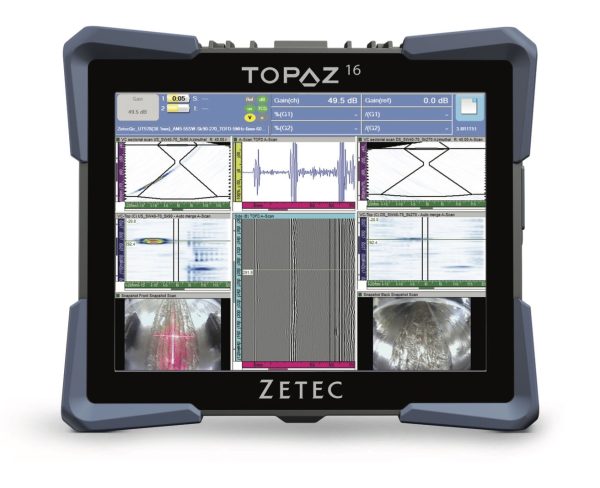

Zetec Topaz 16 Portable 16-Channel Phased Array UT Instrument

The Zetec Topaz 16 is a versatile and portable phased array ultrasonic testing (UT) instrument designed for a variety of non-destructive testing (NDT) applications. With 16 channels and built for rugged environments, the Topaz16 is perfect for sectors such as Oil & Gas, Power Generation, Manufacturing, and Transportation. It’s engineered to provide top-tier productivity and exceptional value.

Why Choose the Zetec Topaz16?

Zetec is renowned for its high-quality NDT solutions, and the Topaz16 is no exception. This model caters to a broad range of inspection needs, including:

• Weld inspections
• Corrosion mapping
• Both encoded and manual inspections
• Detailed inspections of complex components

Outstanding Features

The Topaz16 stands out with its impressive operating temperature range and durable aluminum housing, designed to handle various inspection conditions without an air intake. Its 10.4-inch high-resolution display is among the largest relative to the instrument’s size, ensuring clear visibility both indoors and out. The touch screen is highly responsive, even when used with gloves.

Powered by UltraVision Software

The Topaz16 comes equipped with UltraVision touch software, offering superior data analysis and reporting capabilities. For more details on the software, you can visit the UltraVision Touch page.

Available Versions

The Topaz16 is offered in two configurations:

• 16/64: Supports up to 16 active channels with up to 64-element probes.
• 16/128: Provides up to 16 active channels with up to 128-element probes for enhanced inspection capabilities.

Both versions feature the universal IPEX connector, making it easy to integrate with your existing probes. Upgrading from the 16/64 to the 16/128 version can be done through a simple software update, avoiding the need to return the unit to Zetec.

Designed for Reliability and Convenience

With its advanced software, wide temperature range, multi-touch screen, and proven durability, the Topaz16 is designed to deliver exceptional performance. It’s compact yet powerful, making it a valuable tool for any inspection task.

Specifications:

• Dimensions (HxWxD): 8.7 x 10.6 x 4.7 in. (221 x 271 x 120 mm)
• Weight (with battery): 10 lbs (4.5 kg)
• Display: 10.4 in. wide, 1024 x 768 pixels, multi-touch
• Air Intake: None
• Battery Operation: Yes
• Phased Array Connectors: ZPAC or IPEX
• Phased Array Channels: 16/64 or 16/128
• UT Channels: 1 P/E or 1 P/C
• Amplitude Resolution: 16 bits
• Measurement Gates: 4 + 1 synchronization gate
• Data Interfaces: Ethernet 1000 Base-T, 1x USB 3.0, 2x USB 2.0
• Maximum PRF: 12 kHz
• Data Compression: 1, 2, 4, 8, 16
• Max. Pulser Voltage (Open Circuit): 105v PA UT / 215v UT
• Max. Applied Voltage (50 ohms): 75v PA UT / 200v UT
• Bandwidth (-3 dB): 0.5 to 18 MHz
• Rectification: Digital
• Filtering: Analog/Digital (FIR)
• Smoothing (Video Filter): Digital
• Self-Check: Yes
• Automated Probe Detection: Yes (with Zetec probe ID chip)
• Automated Scanner Detection: Yes (with Zetec ID chip)
• Focal Laws: 256
• Max. Number of Samples: 8,192
• Max. Data File Size: 300MB for 16/64 version, 700MB for 16/128 version
• Encoder Interfaces: 2 quadrature-type
• PC Software Control: UltraVision Touch embedded
• Data Acquisition and Analysis: UltraVision Touch, UltraVision 3
• Embedded Hard Drive: 256GB SSD
• Video Output: HDMI
• Calibration Compliance: ISO 18563-1 / EN 12668-1
• Power Supply: 100 to 240 VAC, 50 or 60Hz, Max. Power 100 VA
• Operating Temperature Range: 14°F to 113°F (-10°C to 45°C); with external fan kit: up to 127°F (53°C)
• Storage Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Relative Humidity: 80% non-condensing
• Ingress Protection Rating: IP66

The Zetec Topaz16 is built to excel in demanding environments, offering reliability, precision, and ease of use for a wide range of inspection tasks.
