FARO Focus M 70 Laser Scanner – Sale

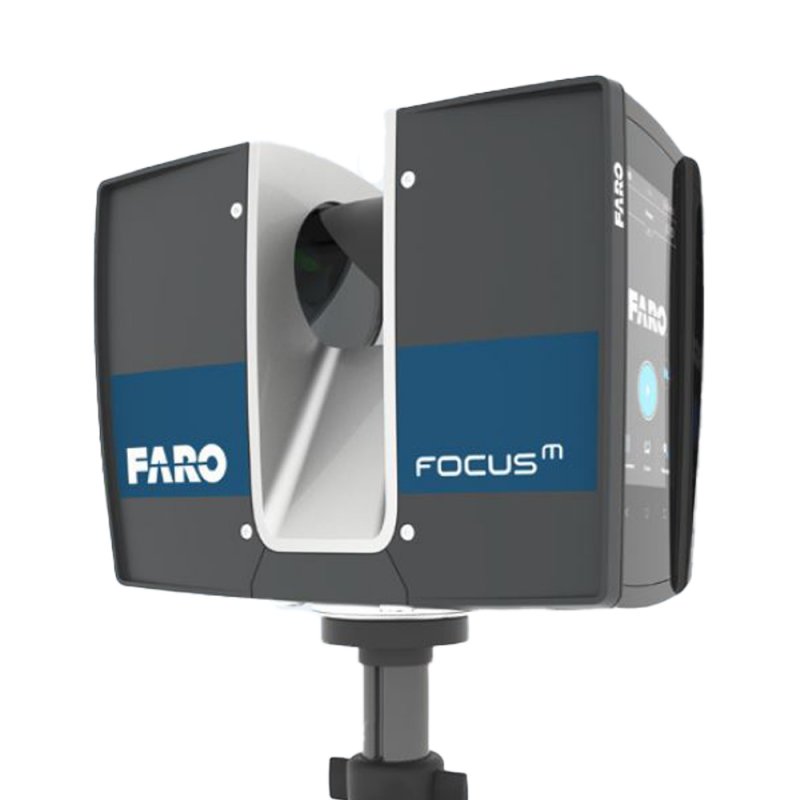

FARO Focus M 70 Laser Scanner

The ultra-portable FARO Laser Scanner Focus 70 enables fast, straight-forward and accurate measurements of construction sites, small-scale facades, complex structures, production and supply facilities and crash and crime scenes.

The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.

The scanner combines an advanced laser range unit with HDR imaging and a high‑resolution color camera to produce realistic color‑enhanced scans. It records up to hundreds of thousands of points per second and includes integrated sensors such as GPS/GLONASS, compass and a dual‑axis compensator to improve scan orientation and accuracy.

Robust performance and repeatable measurement

• High accuracy.
• IP54 water and dust resistant
• Operates in darkness or bright sunlight

 Features & Benefits

• Easy, immediate, and repeatable results
• Compact design, low weight
• High-Speed Dynamic Measurement for moving or scanning application and real time adjustment.

FARO Focus M 70 Laser Scanner technical spesification
Range: 0.6 – 70m
High Dynamic Range (HDR) Exposure Bracketing 2x, 3x 5x
Measurement Speed: up to 488,000 points/second
Ranging Error: ±3mm
Sealed Design – Ingress Protection (IP) Rating Class 54
On-site Compensation
Integrated GNNS and GLONASS
Field of View (vertical³/Horizontal): 360?/360?
Max. Vertical Scan Speed: 97Hz
Laser Class: Laser Class 1
Weight: 4.2kg
Size: 230 x 183 x 103mm
